六类非屏蔽网线

六类非屏蔽网线

产品型号：0.5-4P NSGDT6

产品规格：24AWG UTP

产品概述：多色(15色)可选，阻燃，符合RoHS 指令要求 Materials compile with RoHS requirement。广泛应用于办公电脑，监控终端，数字信息终端等水平网络应用布线。分300m/箱和100m/箱两种规格。导线尺寸：4×2×24AWG，线缆外径大于6.2mm。

产品特征

Product features

传输速率高达1000Mbps，传输带宽达350MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有E级链路和六类的应用。

The transmission rate is up to 1000Mbps, and the transmission bandwidth is 350MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all E level links and Cat.6 applications.

绝缘层与导体的密着性(紧包)大于45N/50mm，且芯线退扭率要求达100%。

The tightness (tight) of the insulating layer and the conductor is greater than 45N/50mm, and the retreating rate of the core line is more than 100%.

芯线绞线方向与成缆绞线方向为反方向，且成缆采用100%退扭，确保线缆结构的稳定性及笔直性。 The direction of the wire stranded wire is opposite to the direction of the cable stranded line, and the cable adopts 100% back twisting to ensure the stability and the straight character of the cable structure.

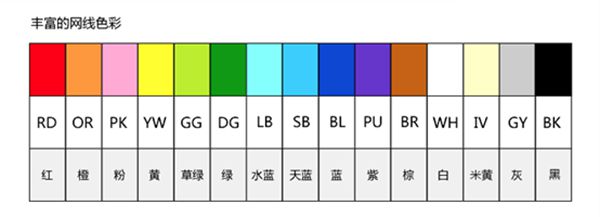

外被颜色具有15种颜色可供选择，且从外箱能清楚识别。

Coat color has 15 colors for choice, and from outside the box can clearly identify.

印字采用梯减方式，施工过程中能直观地知道每箱线所剩长度。

In the process of the printing, the length of each line can be intuitively known in the process of construction.

物理特性

Physical properties

电气性能远超过EN 50173-1，ISO/IEC 11801，ANSI/TIA-568C.2标准。

Electrical performance is far more than EN 50173-1, ISO/IEC 11801, ANSI/TIA-568C.2 standard. 阻燃性符合GB/18380.12，JIS C 3005标准。

The flame retardancy is in accordance with GB/18380.12, JIS C 3005 standar.

环路电阻(20℃时)Loop resistance：< 180Ω/km

特征阻抗 Characteristic impedance：100Ω/-7Ω+13Ω

静电容量 Electrostatic capacity：< 56pF/m

静电耦合 Electrostatic coupling：< 3.3PF/m

弯曲半径 Bending radius：

固定时 When fixing：≥ 44mm

牵引时 When towing：≥ 55mm

拉伸强度 Tensile strength：≤ 110N

温度范围 Temperature range：

安装时 When installing：0℃ ~+50℃

工作时 When working：-20℃~+60℃

适用规格 Applicable specifications

ANSI/TIA-568-C.2 100Ω平衡双绞线网络线 六类网络线

ANSI/TIA-568-C.2 & 100Ω Twisted pair cable, Category 6 excess

JIS X 5150:2004、ISO/IEC 11801:2002、YD/T 1019、JIS C 3005 60度倾斜燃烧测试

60 ℃ inclined combustion test

使用材料：

符合RoHS 指令要求

Materials compile with RoHS requirement
